TECHNICAL DATA
1. Rated voltage: AC 110/220V
2. Max.Current: AC 16(4)A
3. Frequency: 50/60Hz
4. Max.Using Temperature: 60℃
5. Protection Degree: IP68
DESCRIPTIONS
1. Auto-fill-water modes

Connect the control's blue line to electric pump,brown line is connected to zeroline, black line can not be connected and should be insulated.
2. Auto-drainage and lack-water protection modes

Connect the control's black line to electric pump, brown line is connected to zeroline, blue line can not be connected and should be insulated.

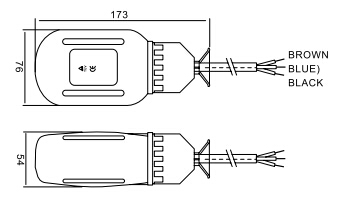

3. Outline dimension
